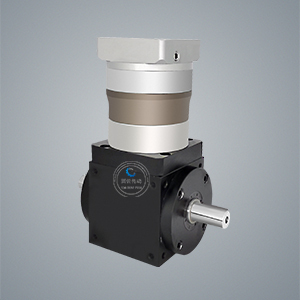

GUZUO AT-FL precision planetary commutator

Shanghai guzuo AT series precision bevel reducer is a compact right-angle gearbox with high-precision spiral bevel gear structure. Adopting all-alloy steel gear and high rigidity housing, this steering reducer features low noise, zero backlash, steady rotation and 90° power transmission. Widely compatible with servo motors and stepper motors, it is commonly used for automated machinery, linear motion systems, packaging equipment and precision industrial transmission equipment.

Main Features

90° Right Angle Output: Vertical steering design saves installation space, suitable for narrow and compact mechanical layout.
Ultra-low Backlash: High-precision grinding spiral bevel gears ensure clearance ≤1-5 arcmin for accurate positioning.
High Rigidity & Stable Operation: Reinforced cast iron housing and thickened gear shaft provide strong torsion resistance.
High Transmission Efficiency: Optimized gear meshing design reduces friction loss, transmission efficiency up to 97%.
Mute & Smooth Running: Helical bevel gear processing ensures low vibration and quiet operation at high speed.
Dual Shaft & Customization: Optional single shaft, double shaft, hollow shaft and flange mounting types.

Application Scope

Suitable for automated production lines, packaging machinery, logistics conveying equipment, medical machinery, printing machinery, robotic arms and servo drive systems. AT bevel gear reducer is the best choice for high-precision right-angle power conversion.

Precautions

Prohibit instantaneous overload and frequent forward and reverse rotation to avoid gear damage.
Keep horizontal installation to ensure even lubrication inside the gearbox.
Do not use in corrosive and dusty environment without protective measures.
