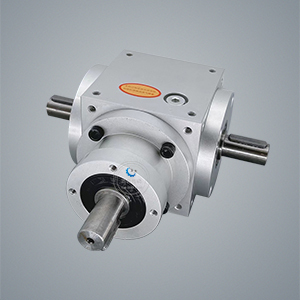

AT precision planetary commutator

A、Structual　features：

a. The box is a whole hexagon, with mounting holes left on five sides, which can be   installed in different orientations;

b. 90-degree right angle steering box with long design life, large bearing capacity,

stable transmission and low noise;

c. AT precision planetary commutator, transmission efficiency is greater than 95%;

d. The arc-shaped bevel gear set adopts high-quality low carbon alloy steel,which is

carburized and quenched and ground running to achieve high precision closed gear

transmission.

e. The AT planetary right angle commutator has various specifications, multiple speed

ratios, large selection range and various output forms, which can meet the needs of

various occasions;

f. It can realize two transmission modes: deceleration and increase speed.

B、Input type：

a. Axle input type

b. Flange hole input type，connect with motor：

     single ratio: 3 / 4 / 5 / 7 / 10

     double ratio：12 / 15 / 16 / 20 / 25 / 28 / 35 / 40 / 50

     AT090-T280　three level ratio：64 / 80 / 100 / 125 / 140 / 175 / 200 / 250

    Rated torque： 25~3200Nm

C、Output type：

a. SZ：double axle output

b. DZ：single axle output

c. S3: key hole output

D、Model number：

   AT065 / AT075 / AT090 / AT110 / AT140 / AT170 / AT210 / AT240 / AT280
